Ranger (2024 – 2026)

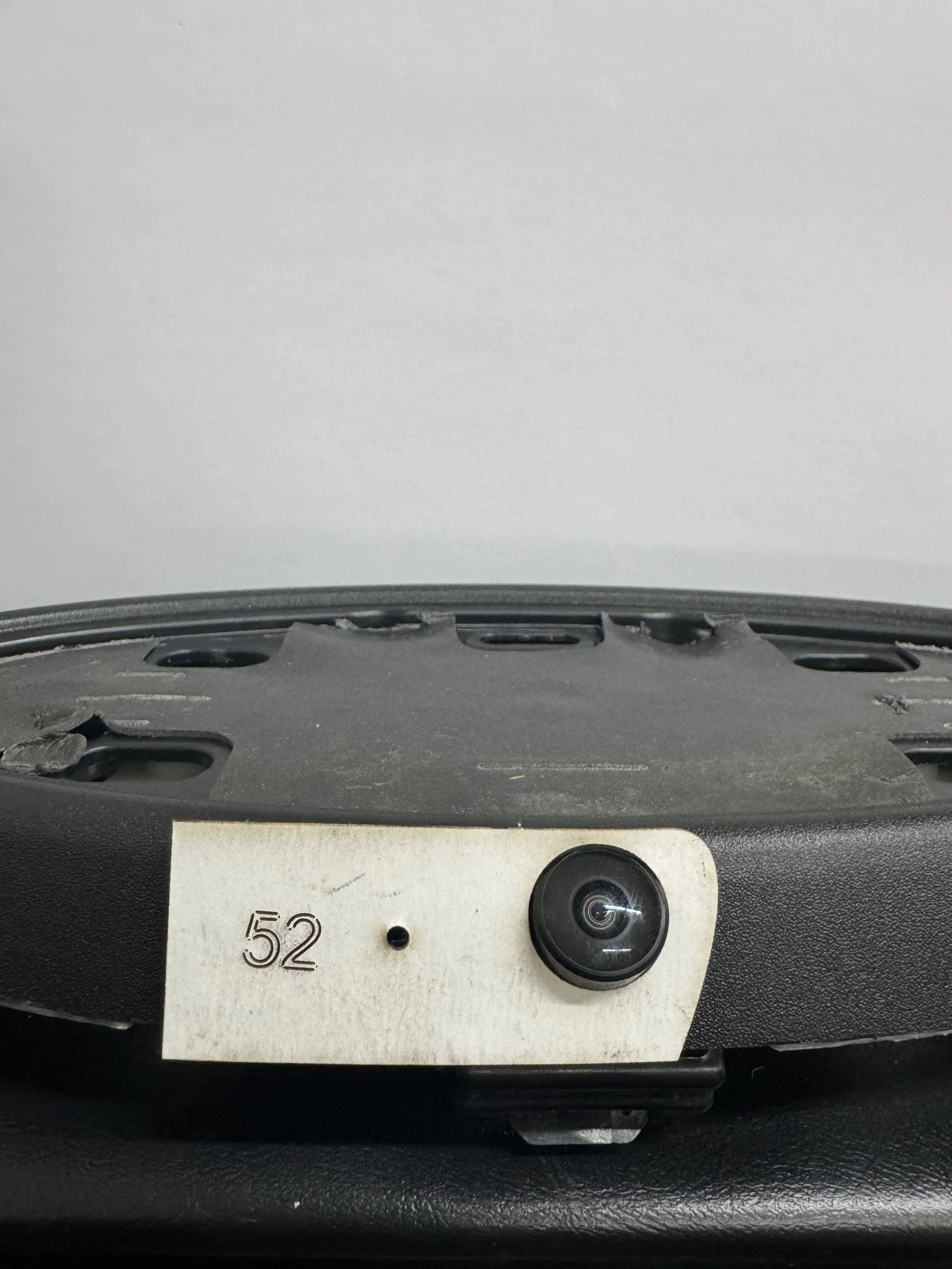

Template #52 Location

Verify your camera housing matches what is shown in the picture*
Drill template reference
See where your template goes and compare it with other vehicles that use the same template.
What You Will Need:
- Template #52 (Found in your ClearVU Kit)
- Small o-ring (Found in your clearvu kit)
- Sharp Razor Blade
- Side Cutters
- Step Drill (Or 5/16” Drill)
- Torx Bits
- Socket Set
- Center Punch or Marker
